Línea A4 MM

Sellos de Semi Proceso

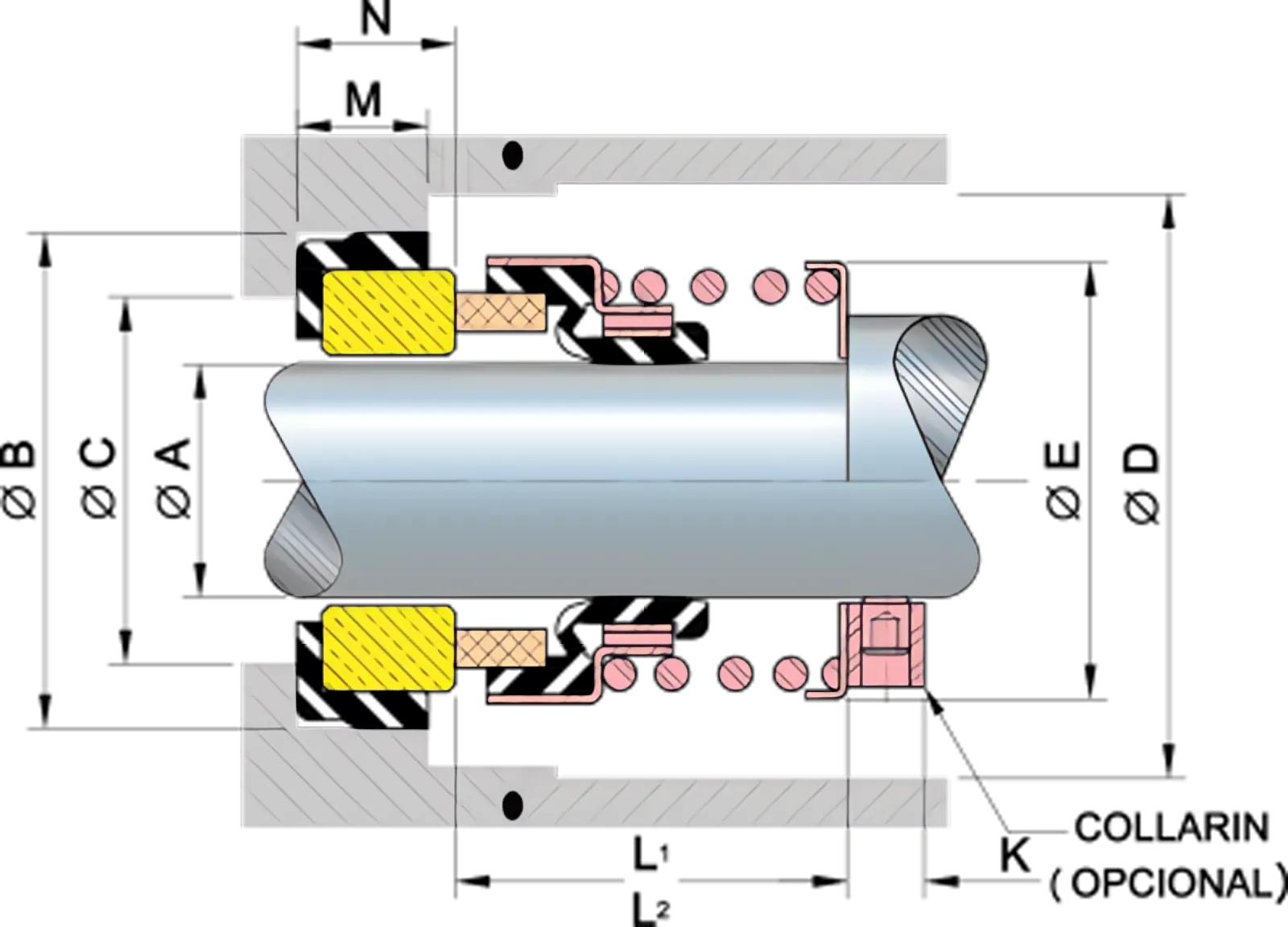

El sello mecánico VAZEL Línea "A4 mm", es utilizado en bombas industriales, turbinas rotativas, centrífugas o agitadores. Funciona con fluidos hidráulicos y soluciones acuosas, dependiendo la combinación de materiales.

Materiales

Material Asiento *

Material Cara *

Material Elastómero *

Partes Metálicas *

Material Resorte *

Diámetro de Eje

Cantidad

Dimensiones

A	B	C	D	E	K	L	M	N	L₀
15	31.75	23.8	34.11	30.94	7.92	33.32	8.74	10.31	22.22
16	31.75	23.8	34.11	30.94	7.92	33.32	8.74	10.31	22.22
18	34.93	26.97	37.29	34.11	9.53	33.32	8.74	10.31	22.22
19	34.93	26.97	37.29	34.11	9.53	33.32	8.74	10.31	22.22
20	34.93	26.97	37.29	34.11	9.53	33.32	8.74	10.31	22.22
22	38.1	30.15	42.06	38.89	9.53	34.93	8.74	10.31	23.8
24	41.28	33.32	44.45	41.28	9.53	39.67	9.53	11.13	25.4
25	41.28	33.32	44.45	41.28	9.53	39.67	9.53	11.13	25.4
26	44.45	36.5	47.5	44.32	9.53	41.28	9.53	11.13	26.97
28	44.45	36.5	47.5	44.32	9.53	41.28	9.53	11.13	26.97
30	47.63	39.67	50.8	47.63	9.53	41.28	9.53	11.13	26.97
32	47.63	39.67	50.8	47.63	9.53	4.28	9.53	11.13	26.97
33	50.8	42.85	53.98	50.8	9.53	42.85	9.53	11.13	28.58
35	50.8	42.85	53.98	50.8	9.53	42.85	9.53	11.13	28.58
38	53.98	46.02	65.07	63.03	9.53	42.85	11.13	12.7	28.58
40	60.33	50.8	74.6	69.04	9.53	50.8	11.13	12.7	34.93
42	60.33	50.8	74.6	69.04	9.53	50.8	11.13	12.7	34.93
43	63.5	53.98	77.77	69.85	9.53	50.8	11.13	12.7	34.93
45	63.5	53.98	77.77	69.85	9.53	50.8	11.13	12.7	34.93
48	66.68	57.15	80.95	73.03	9.53	53.9	11.13	12.7	34.93
50	69.85	60.33	74.6	71.42	9.53	53.98	11.13	12.7	38.1
52	76.2	63.5	92.08	82.55	12.7	60.33	12.7	14.3	42.85
53	76.2	63.5	92.08	82.55	12.7	60.33	12.7	14.3	42.85
55	76.2	63.5	92.08	82.55	12.7	60.33	12.7	14.3	42.85
58	82.55	69.85	98.43	88.9	12.7	63.5	12.7	14.3	46.02
60	82.55	73.03	92.08	96.82	12.7	63.5	12.7	14.3	46.02
63	85.73	73.03	109.52	98.43	12.7	63.5	12.7	14.3	46.02
65	85.73	73.03	95.25	92.08	12.7	69.85	14.27	15.88	49.2
68	88.9	79.38	98.43	95.25	12.7	69.85	14.27	15.88	49.2
70	88.9	79.38	98.43	95.25	12.7	69.85	14.27	15.88	49.2
75	98.43	85.73	106.35	103.17	12.7	73.03	14.27	15.88	52.37
