Línea A2 MM

Sellos de Semi Proceso

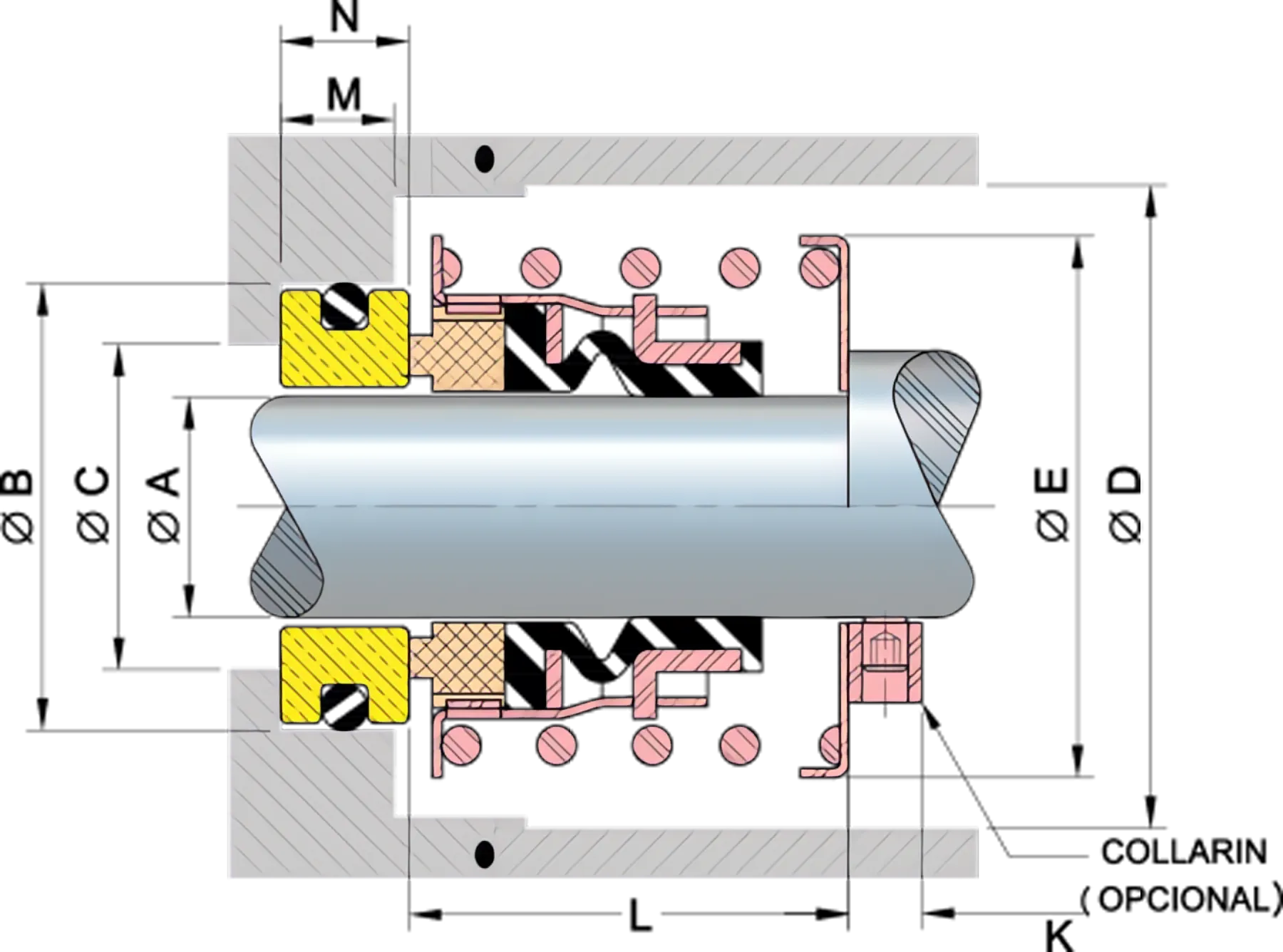

El sello mecánico VAZEL Línea "A2" mm, es utilizado en bombas industriales, turbinas rotativas, centrífugas o agitadores. Funciona con fluidos hidráulicos y soluciones acuosas, dependiendo la combinación de materiales.

Materiales

Material Asiento *

Material Cara *

Material Elastómero *

Partes Metálicas *

Material Resorte *

Diámetro de Eje

Cantidad

Dimensiones

A	B	C	D	E	K	L	M	N
15	31.75	23.8	39.67	34.93	7.92	22.23	8.74	10.31
16	31.75	23.8	39.67	34.93	7.92	22.23	8.74	10.31
18	34.93	26.97	42.85	38.1	9.53	22.23	8.74	10.31
19	34.93	26.97	42.85	38.1	9.53	22.23	8.74	10.31
20	34.93	26.97	42.85	38.1	9.53	22.23	8.74	10.31
22	38.1	30.15	46.02	41.28	9.53	23.8	8.74	10.31
24	41.28	33.32	50.8	46.02	9.53	25.4	9.53	11.13
25	41.28	33.32	50.8	46.02	9.53	25.4	9.53	11.13
26	44.45	36.5	53.98	49.2	9.53	26.97	9.53	11.13
28	44.45	36.5	53.98	49.2	9.53	26.97	9.53	11.13
30	45	39.67	57.15	52.37	9.53	26.97	9.53	11.13
32	47.63	39.67	57.15	52.37	9.53	26.97	9.53	11.13
33	50.8	42.85	61.9	57.15	9.53	28.58	9.53	11.13
35	50.8	42.85	61.9	57.15	9.53	28.58	9.53	11.13
38	53.98	46.02	65.07	63.03	9.53	28.58	9.53	11.13
40	60.33	50.8	74.6	69.04	9.53	34.93	11.13	12.7
42	60.33	50.8	74.6	69.04	9.53	34.93	11.13	12.7
43	63.5	53.98	77.77	69.85	9.53	34.93	11.13	12.7
45	63.5	53.98	77.77	69.85	9.53	34.93	11.13	12.7
48	66.68	57.15	80.95	73.03	9.53	38.1	11.13	12.7
50	69.85	60.33	84.12	76.2	9.53	42.85	11.13	12.7
52	76.2	63.5	92.08	82.55	12.7	42.85	12.7	14.27
53	76.2	63.5	92.08	82.55	12.7	42.85	12.7	14.27
55	76.2	63.5	92.08	82.55	12.7	42.85	12.7	14.27
58	82.55	69.85	98.43	88.9	12.7	46.02	12.7	14.27
60	82.55	73.03	101.6	96.82	12.7	46.02	12.7	14.27
63	85.73	73.03	101.6	92.08	12.7	46.02	12.7	14.27
65	85.73	73.03	109.52	98.43	12.7	49.2	14.27	15.88
68	88.9	79.38	112.7	101.6	12.7	49.2	14.27	15.88
70	92	83	114.3	104	12.7	49.2	14.27	15.88
75	98.43	85.73	119.05	107.95	12.7	52.37	14.27	15.88
