Línea A4
Sellos de Semi Proceso

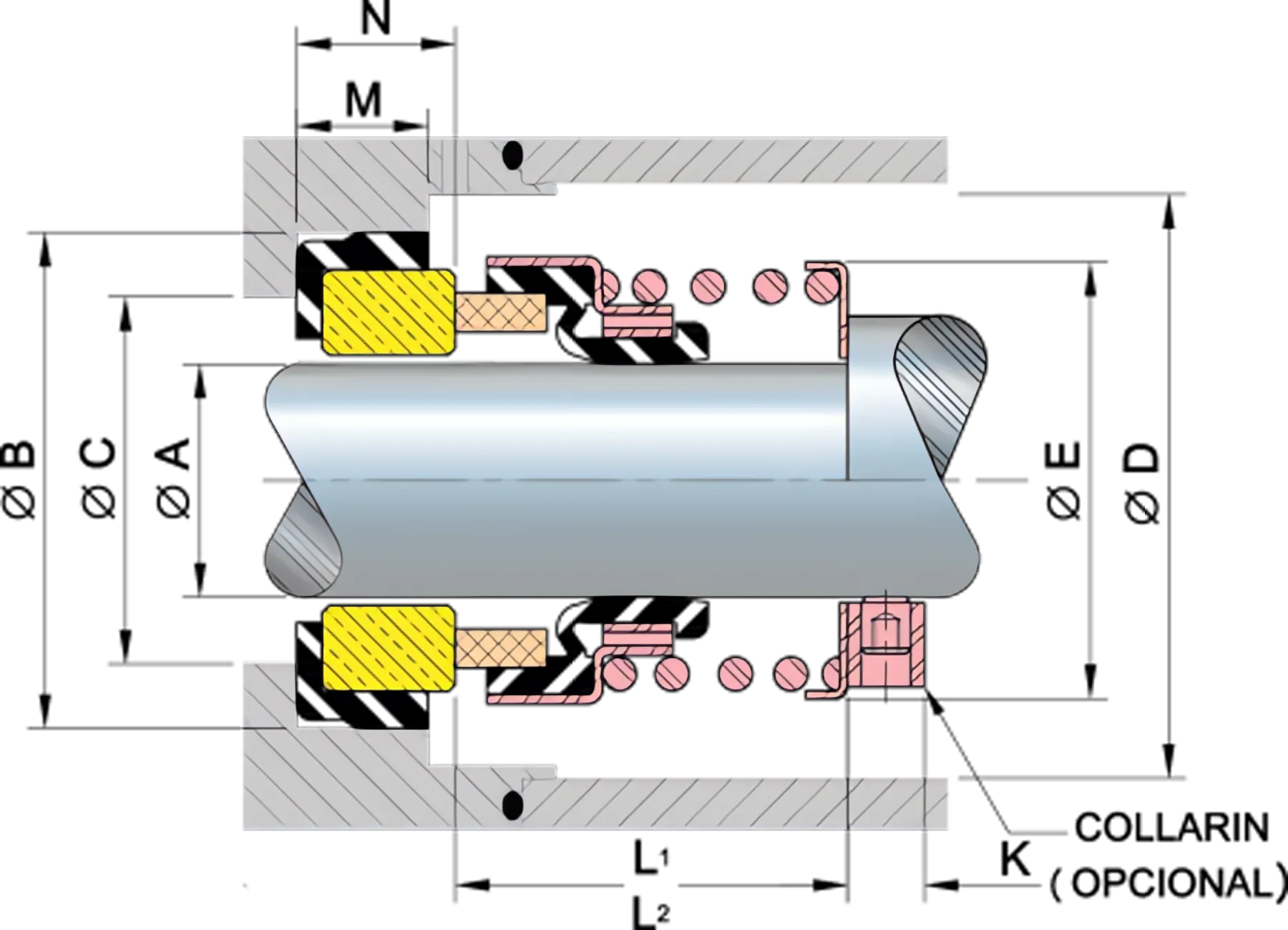

El sello mecánico VAZEL Línea "A4", es utilizado en bombas industriales, turbinas rotativas, centrífugas o agitadores. Funciona con fluidos hidráulicos y soluciones acuosas, dependiendo la combinación de materiales.
Materiales
Dimensiones
| A | B | C | D | E | K | M | N | L1 | L2 |
|---|---|---|---|---|---|---|---|---|---|
| 5/8 | 1.25 | 0.937 | 1.343 | 1.218 | 0.312 | 0.344 | 0.406 | 1.312 | 0.875 |
| 3/4 | 1.375 | 1.062 | 1.468 | 1.343 | 0.375 | 0.344 | 0.406 | 1.312 | 0.875 |
| 7/8 | 1.5 | 1.187 | 1.656 | 1.531 | 0.375 | 0.344 | 0.406 | 1.375 | 0.937 |
| 1 | 1.625 | 1.312 | 1.75 | 1.625 | 0.375 | 0.375 | 0.438 | 1.562 | 1 |
| 1-1/8 | 1.75 | 1.437 | 1.87 | 1.745 | 0.375 | 0.375 | 0.438 | 1.625 | 1.062 |
| 1-1/4 | 1.875 | 1.562 | 2 | 1.875 | 0.375 | 0.375 | 0.438 | 1.625 | 1.062 |
| 1-3/8 | 2 | 1.687 | 2.125 | 2 | 0.375 | 0.375 | 0.438 | 1.687 | 1.125 |
| 1-1/2 | 2.125 | 1.812 | 2.25 | 2.125 | 0.375 | 0.375 | 0.438 | 1.687 | 1.125 |
| 1-5/8 | 2.375 | 2 | 2.5 | 2.375 | 0.375 | 0.438 | 0.5 | 2 | 1.375 |
| 1-3/4 | 2.5 | 2.125 | 2.625 | 2.5 | 0.375 | 0.438 | 0.5 | 2 | 1.375 |
| 1-7/8 | 2.625 | 2.25 | 2.75 | 2.625 | 0.375 | 0.438 | 0.5 | 2.125 | 1.5 |
| 2 | 2.75 | 2.375 | 2.937 | 2.812 | 0.375 | 0.438 | 0.5 | 2.125 | 1.5 |
| 2-1/8 | 3 | 2.5 | 3.125 | 3 | 0.5 | 0.5 | 0.562 | 2.375 | 1.687 |
| 2-1/4 | 3.125 | 2.625 | 3.25 | 3.125 | 0.5 | 0.5 | 0.562 | 2.375 | 1.687 |
| 2-3/8 | 3.25 | 2.75 | 3.375 | 3.25 | 0.5 | 0.5 | 0.562 | 2.5 | 1.812 |
| 2-1/2 | 3.375 | 2.875 | 3.5 | 3.375 | 0.5 | 0.5 | 0.562 | 2.5 | 1.812 |
| 2-5/8 | 3.375 | 3 | 3.75 | 3.625 | 0.5 | 0.562 | 0.625 | 2.75 | 1.937 |
| 2-3/4 | 3.5 | 3.125 | 3.875 | 3.75 | 0.5 | 0.562 | 0.625 | 2.75 | 1.937 |
| 2-7/8 | 3.75 | 3.25 | 4 | 3.875 | 0.5 | 0.562 | 0.625 | 2.875 | 2.062 |
| 3 | 3.875 | 3.375 | 4.187 | 4.062 | 0.5 | 0.562 | 0.625 | 2.875 | 2.062 |
